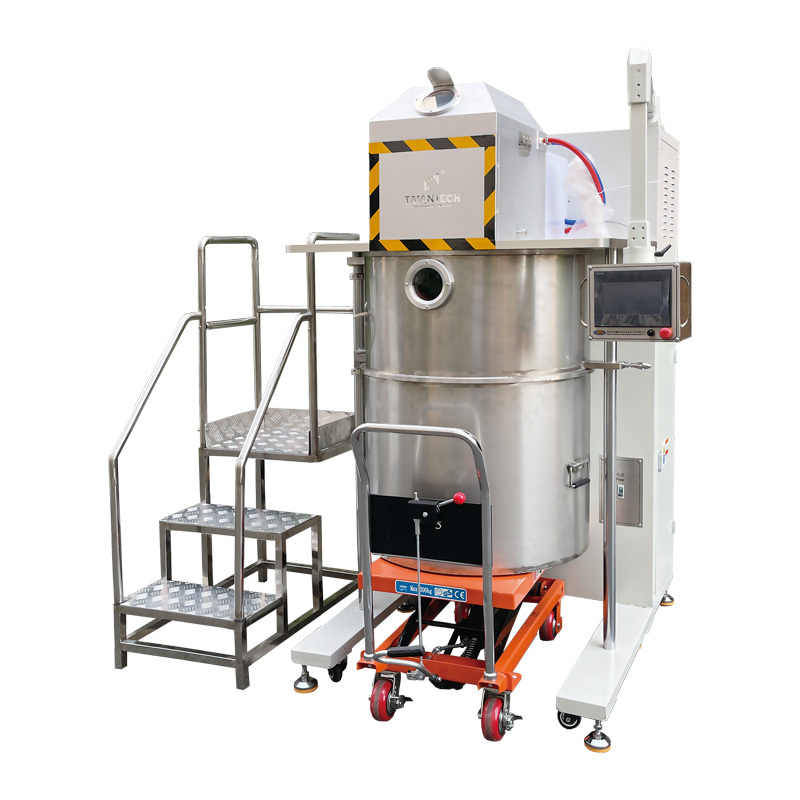

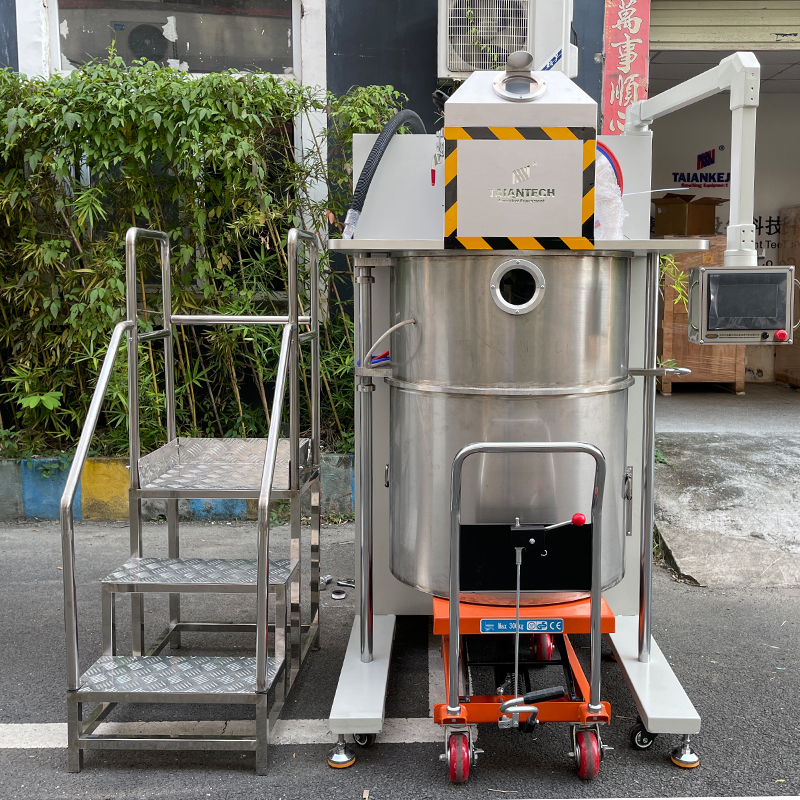

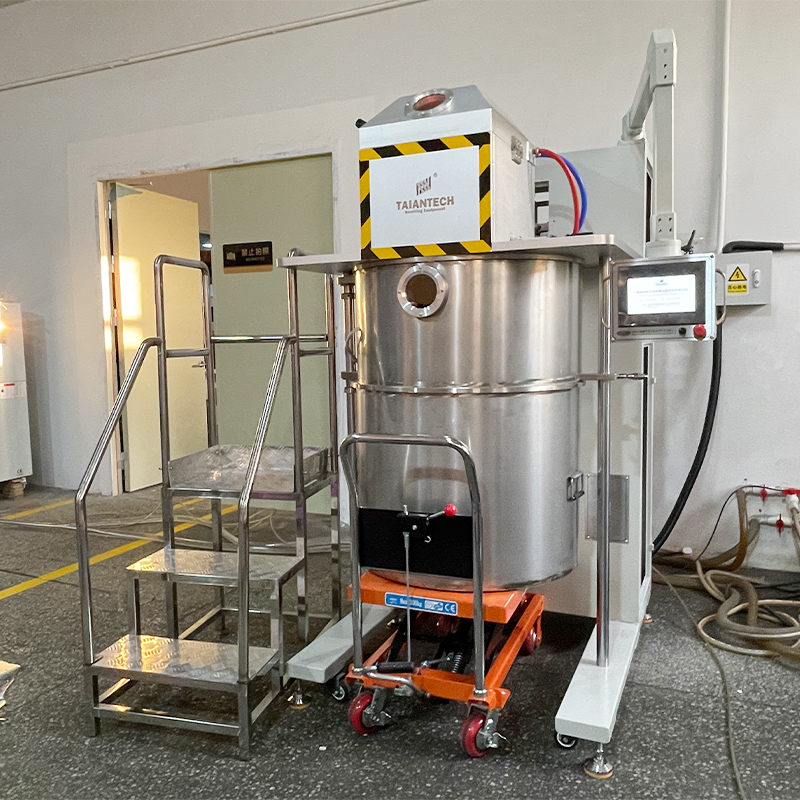

TAEANTECH Metal Flakes Processing Machine

No.TA-GP/ZP

High purification efficiency: Taeantech Metal Flakes Processing Machine main function is to assist jewelry industry companies to improve production efficiency. Compared with other refining materials, gold flake has a larger contact area when immersed in aqua regia, so the refining speed is faster and more efficient, and the purification effect is more obvious, thus speeding up the production process.

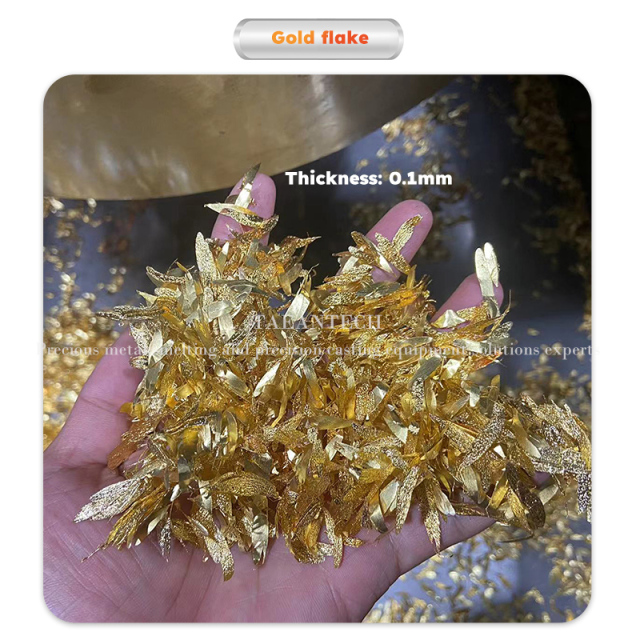

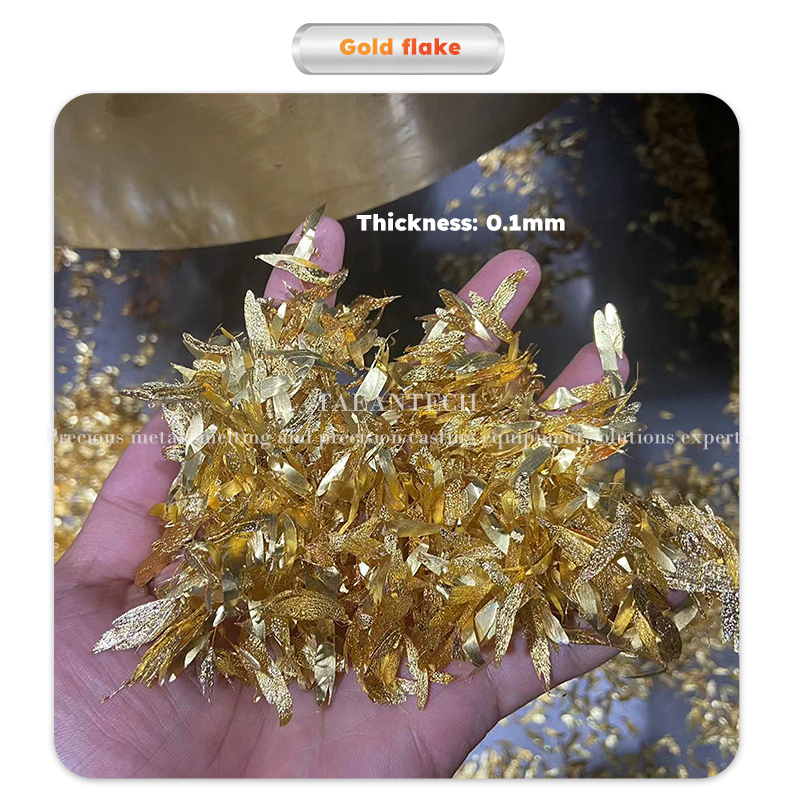

Fast production speed: Taeantech Metal Flakes Processing Machine can produce 10-100 kg of gold, silver, platinum, palladium and other metal leaves with uniform shapes and sizes in one hour. The thickness is only 0.15-0.35 mm. They are extremely high-quality metal sheets and are processed using water cooling. Material casting. These foils can be used without drying, meeting customers' production needs.
Mitsubishi PLC+PID temperature control panel: Mitsubishi PLC realizes precise control of various parameters in the melting and production process. The human-machine interface intelligent control can automatically complete the entire process from melting metal to making metal sheets with one click. It is intelligent. Making the operation very simple and convenient. PID intelligent temperature control can accurately control the temperature, and the controlled temperature difference will not exceed ±1℃. You don’t have to worry about other ordinary metal flake machines on the market producing inferior metal flakes due to inaccurate temperature control, thus affecting the purification.
Safety protection: Taeantech Metal Flakes Processing Machine is based on advanced circuits, consumes very little energy and reduces energy consumption. This machine has a complete protection system. When overcurrent, overvoltage, overtemperature, short circuit, etc. occur, the fault light will light up and the automatic alarm device will sound an alarm at the same time.

Maximum temperature
2100℃
Power max.
50KW
Electrical connection
380V Threee phase 50/60Hz
Capacity optianal
1-100kg
Thickness range
0.08-0.5mm
Application Metal
Pt, Pd, Rh,SS,Au, Ag, Cu,alloys
  • TAEANTECH Metal Flakes Processing Machine
  • TAEANTECH Metal Flakes Processing Machine
  • TAEANTECH Metal Flakes Processing Machine
  • TAEANTECH Metal Flakes Processing Machine
  • TAEANTECH Metal Flakes Processing Machine
  • TAEANTECH Metal Flakes Processing Machine

Parameters

Model No. ZPR1 ZPR10 PR10 PR50
Voltage 380V, 50/60Hz, 3 phases
Power 8KW 30KW 15KW  40KW
Max temp. 1500 ℃
Capacity(gold) 1kg 5kg 30kg 50kg
Application Pt, Pd, Rh,SS,Au, Ag, Cu,alloys Au, Ag, Cu, other alloys
Sheet thickness 0.08-0.5mm
Inert gas Argon / Nitrogen
Melting time 2-3 min. 3-5min. 6-8min. 15-25min.
Controller Japan Mitsubishi PLC Touch Panel Controller
Cooling type Water chiller(sold separately) or Running water
Dimensions 1060*1380*1950mm
Weight approx. 480kg




Advanced Induction Melting Technology
This machine is designed to integrate with melting furnaces, including induction melting furnaces, gold melting furnaces, and copper melting furnaces, to ensure seamless metal processing. It efficiently prepares metal flakes for remelting while minimizing energy consumption.

Versatile Metal Processing Capabilities

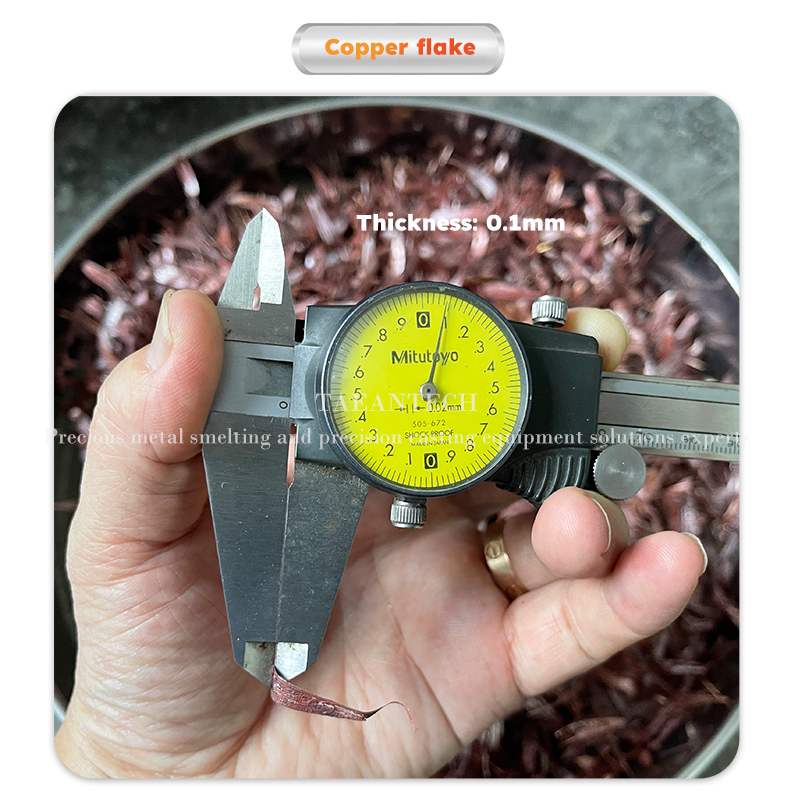

Compatible with various metal materials, including copper flakes, aluminum shavings, and precious metal fragments, this system enables optimal material recovery. It supports copper granulation and metal separation, making it a key component for metal recycling plants.

High-Speed & Efficient Operation
With automated processing features, this machine increases production efficiency while reducing manual labor costs. Its precision cutting and separation mechanisms enhance output quality, ensuring higher purity metal flakes for refining.

Durable & Industrial-Grade Construction
Built for heavy-duty industrial use, this metal flakes processing machine is constructed with wear-resistant materials, ensuring long-term durability and stable performance in high-temperature environments.



Product advantages

  • Compatible with Various Melting Furnaces:Works seamlessly with melting furnaces, induction melting furnaces, and gold melting furnaces to refine metal flakes efficiently.
  • Ideal for Copper Recycling & Processing:Designed for copper melting furnace operations and copper granulator machines, enhancing metal recovery rates.
  • Automated & Energy-Efficient:Minimizes manual handling, reduces waste production, and increases processing efficiency.
  • High-Purity Metal Processing:Optimizes metal separation, ensuring high-quality raw materials for further casting and melting.



Enhance your metal processing efficiency with our advanced metal flakes processing machine! Contact us today for wholesale pricing and bulk order inquiries!




FAQ

Which model and gold capacity should I choose for my batch size?

Match the gold capacity to one melt batch, not to your daily total. The ZPR1 holds 1kg and melts in 2-3 min, ZPR10 holds 5kg at 3-5 min, PR10 holds 30kg at 6-8 min and PR50 holds 50kg at 15-25 min. A refinery pouring small lots repeatedly is better served by the smaller units; if you consolidate into one large pour, take PR10 or PR50. Check your crucible size and power headroom before you commit.

Will it integrate with my existing induction, gold, or copper melting furnace?

Yes — this metal flakes processing machine is built to work with induction melting furnaces, gold melting furnaces and copper melting furnaces, so the flakes it produces feed straight back into your existing melt cycle for remelting and refining. You are not buying a second furnace line. Before ordering, decide where the unit stands relative to the furnace and how you will charge the flakes back in; draw that handling route out on paper first.

Can I run it from a 380V three-phase supply?

Yes. The machine runs on 380V, 50/60Hz three-phase supply, so confirm your site delivers that before you commit. What changes by model is the power draw: 8KW on ZPR1, 30KW on ZPR10, 15KW on PR10 and 40KW on PR50. Have an electrician check your panel, cabling and breaker can carry the model you choose; a 40KW unit on a supply sized for less is the mistake that stops commissioning. Keep the supply dedicated where possible.

Can I use running water instead of buying a separate water chiller?

Either is fine. You can cool the machine on running water or on a water chiller, and the chiller is supplied as a separate item, not built in. Running water suits a shop with a steady supply and somewhere for the outflow to go; a chiller suits a site where flow or temperature wanders through the day. Check your water quality and flow before you decide, since the cooling side has to hold up while the unit runs at up to 1500℃.

Can I process platinum, palladium, rhodium, stainless steel, gold, silver, and copper on the same machine?

Yes. One unit handles Pt, Pd, Rh, SS, Au, Ag and Cu, plus Au, Ag and Cu alloys and other alloys, with sheet thickness from 0.08-0.5mm, so a precious metal flakes processing machine for gold refinery work can also run copper batches. Clean the working path between a copper run and a gold or platinum run, and keep a separate collection tray per metal. That discipline keeps your batch records clean and your precious metal flakes free of carryover.

Is one-on-one engineering guidance included for setup and operation?

Yes. Professional engineers give one-on-one teaching guidance, and the machine carries a one-year free warranty from the date of purchase. Have the operator who will actually run it available during commissioning, so the Mitsubishi PLC touch panel training lands with the right person. As your metal processing equipment supplier we stay reachable after handover; ask the engineer to run a full batch on your own material before you sign off.
