500g Vacuum Casting Machine Configuration for Platinum Work
For compact precious-metal casting, the right starting point is a clear operating envelope. This page brings the Taeantech CLV model's listed temperature, pressure, gas and footprint details together so you can assess a vacuum casting machine and a mini vacuum casting machine against your process.
Metal, temperature and atmosphere
Set the Casting Envelope Before You Compare Machines
The CLV model is listed for platinum, gold, silver, copper and alloys. Its 2100°C maximum temperature, adjustable 0-3 bar casting pressure and argon or nitrogen options describe the environment around the pour. Read these fields together when you define a process, rather than treating any one number as a result guarantee.
- Material range
Gold, silver, copper, alloys and platinum are listed applications. - Thermal boundary
Maximum temperature is listed as 2100°C with ±1°C accuracy. - Pressure adjustment
Casting pressure is listed from 0 to 3 bar and can be adjusted. - Protective atmosphere
Argon and nitrogen are the listed inert-gas choices.
500gNominal capacity
2100°CMaximum temperature
0-3 barAdjustable casting pressure
3-5 minListed melting speed
Installation and control checklist
Plan the Footprint, Power and Control Loop
The compact name does not remove installation work. Check service, bench space, mold size and handling capacity before a quotation conversation.
| Electrical service | 220V single phase, 50/60Hz |
|---|---|
| Power | 5KW |
| Maximum flask size | 80 x 100mm |
| Machine dimensions | 480 x 600 x 690mm |
| Listed weight | Approximately 120kg |
| Control and operation | PID temperature control, Mitsubishi PLC, automatic casting and POKA YOKE foolproof operation |
| Casting structure | Dual-chamber rotary design with a 90-degree rotating smelting chamber |
Related equipment routes
Compare the Process Route, Not Just the Capacity
These Taeantech machines sit in different process roles. Use the detail pages to check whether you need melting, gold-bar forming or continuous casting alongside a compact rotary unit.

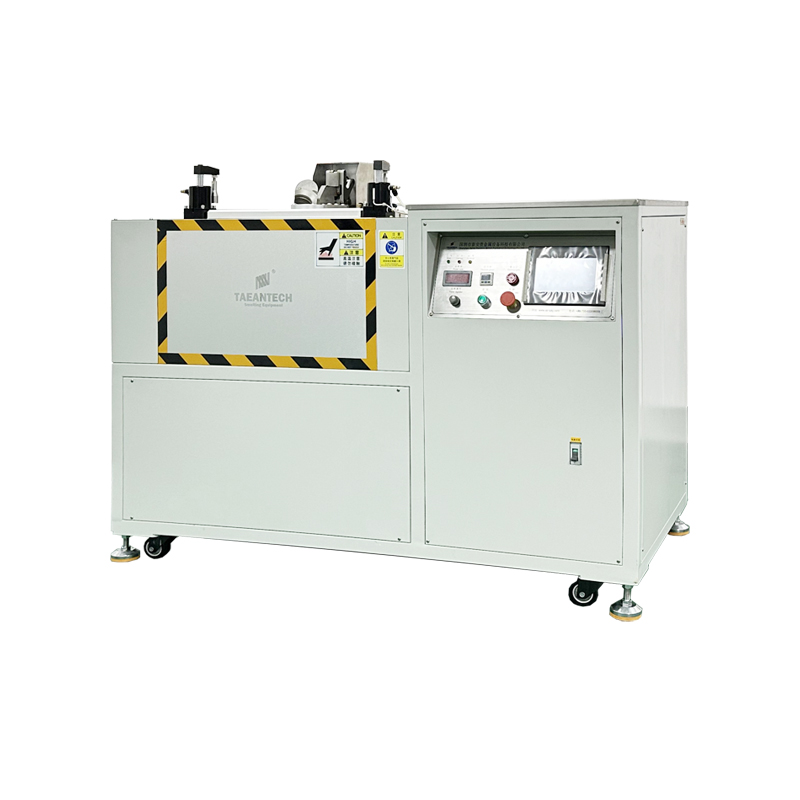

4kg, 8kg and 30kg Gold Bar Making Machine
A gold-bar production direction for buyers whose output form is a bar rather than a small flask casting.
View the gold-bar route

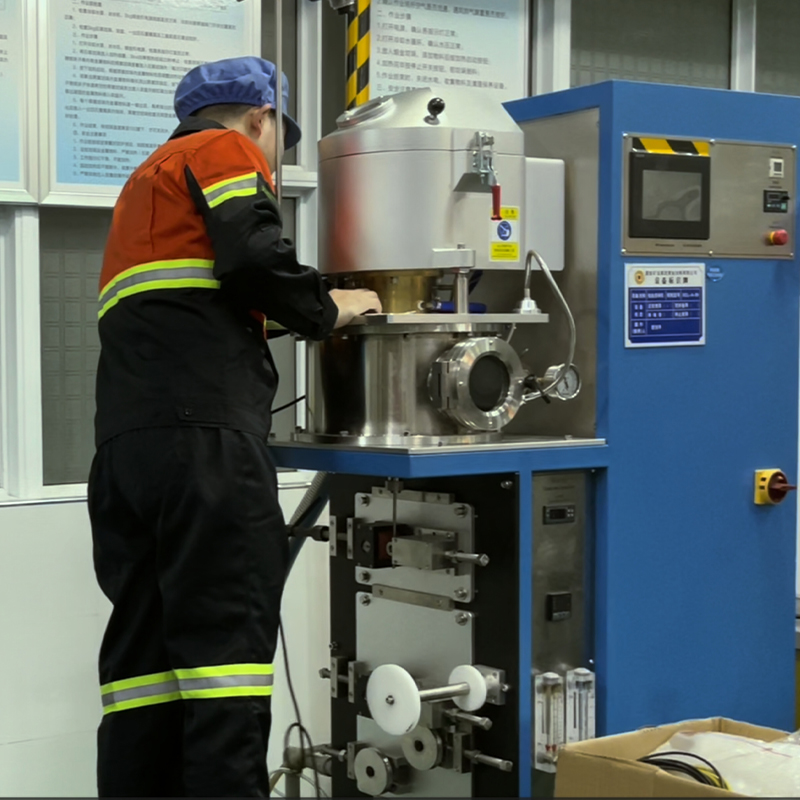

1-20kg Vacuum Continuous Casting Equipment
A continuous casting route for teams assessing wire or longer-run output, with a different capacity and process rhythm.
View the continuous routeFurther reading
Three Ways to Refine the Equipment Conversation
Use the following Taeantech articles to turn a broad machine search into a focused discussion about material, atmosphere, scale and control.
What a 500g Mini Rotary Vacuum Casting Machine Means for Platinum Work
Clarify how capacity, rotary pouring, vacuum and platinum fit together as one equipment category.
Read the category breakdownWhy Platinum Casting Machines Need High Temperature and Protective Gas Control
Use temperature and protective-atmosphere questions to frame a more useful platinum equipment comparison.
Read the temperature and gas discussion500g Vacuum Pressure Casting Machines for Jewelry Workshops and Small Labs
See how a compact 500g class can be positioned for small-batch jewelry and laboratory work without turning capacity into a daily-output promise.
Read the 500g use contextQuestions before a quotation
500g Machine FAQ
What metals can the 500g machine process?
The listed application range includes gold, silver, copper, alloys and platinum. Material recipes and mold trials should be matched to the buyer's process.
What temperature and pressure ranges are listed?
The machine is listed with a maximum temperature of 2100 degrees C, temperature accuracy of plus or minus 1 degree C, and adjustable casting pressure from 0 to 3 bar.
Which protective gases can be used?
Argon and nitrogen are the listed inert-gas options for the casting environment.
What electrical service does the CLV model require?
The listed electrical configuration is 220V, single phase, 50/60Hz with 5KW power.
What mold size and machine footprint should be planned?
The listed maximum flask size is 80 x 100mm. The machine dimensions are 480 x 600 x 690mm and the listed weight is approximately 120kg.
How does the control system support operation?
The listed control features include PID temperature control, a Mitsubishi PLC, automatic casting and a POKA YOKE foolproof operating system.
For configuration questions or a quotation, use the contact path in the hero to share your alloy, mold, power and installation requirements.
