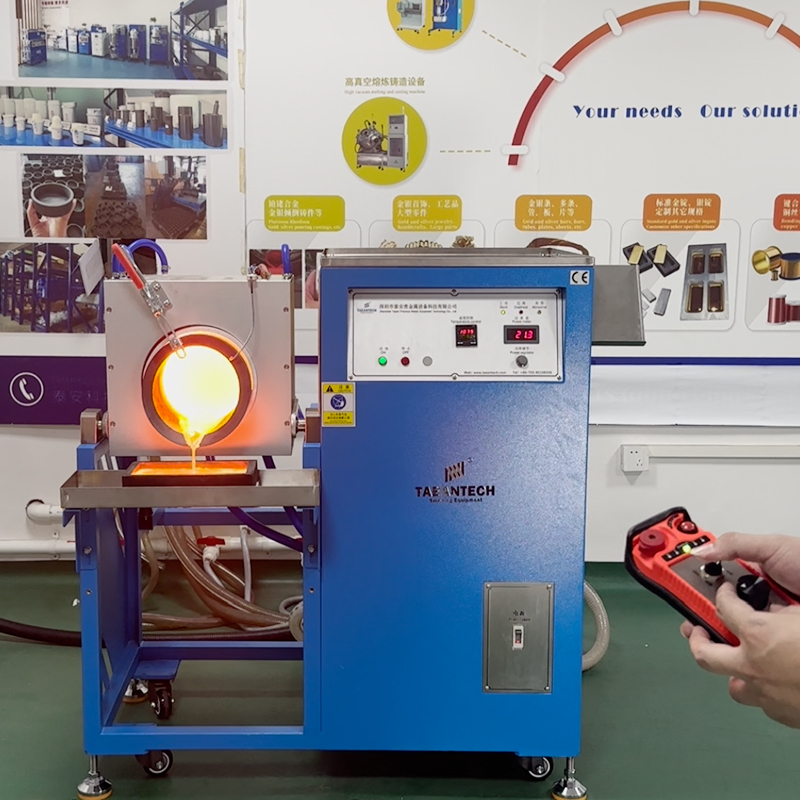

Remote control: Remote control allows the operator to stay away from high temperature molten metal and finish the pouring work automatically and efficiently. This avoids safety accidents caused by splashing of molten metal, protects the personal safety of operator, saves labor force and improves the efficiency of metal melting.
Dual-purpose and cost-effective: Taeantech metal melting automatic pouring machine（AD） can be dual-purpose. You can melt gold, silver, and copper with graphite crucible. You can also melt high temperature refractory metals, such as platinum and rhodium with quartz crucible.The machine has automatic parameter adjustment function, do not have to close the machine frequently, then adjust the parameters, resulting in equipment depreciation.
Fast melting pouring: Taeantech metal melting automatic pouring machine(AD) can reach 2100°C within 3 minutes. With a big power of 30-50KW, it can quickly (4-10 minutes) fully and efficiently melt 30-100kg of platinum, gold and other precious metals, and can immediately complete the pouring work, saving a lot of time.
Mitsubishi PLC+PID±1℃: Mitsubishi PLC achieves precise control of various parameters during the melting and pouring process to ensure that the machine gets the job done perfectly. PID±1℃ temperature control can precisely control the temperature, the controlled temperature difference will not exceed±1°C, is the key to obtain high-quality molten metal.
Safety protection: IGBT digital sensing technology provides seamless and efficient operation. Based on advanced circuit design, it consumes very little energy and reduces the occurrence of safety accidents. This machine has a complete protection system. When faults such as overcurrent, overvoltage, overtemperature, short circuit, etc. occur, the fault light will light up and the alarm will sound, preventing unexpected safety events.
|
Model |
AD20 |
AD50 |
AD100 |
|
Power |
30KW |
50KW |
|
|
Voltage |
380V 50/60Hz 3 phases |
||
|
Max Temp |
1500℃ |
||
|
Melting Time |
10-30Mins |
||
|
Temp Accuracy |
±1°C |
||
|
PID |
PID Temperature Control Optional |
||
|
Capacity Gold |
20KG |
50KG |
100KG |
|
Application |
Au, Ag, Cu,alloys,k-gold |
||
|
Cooling type |
Water chiller(sold separately) or Running water (water pump) |
||
|
Dimensions |
1150*600*1250mm |
||
|
Net Weight |
About 380 KG |
||
High-Capacity Induction Heating：Ensures fast and even metal melting with minimal energy waste.
Automatic Pouring System：Provides precision metal handling, increasing production efficiency and safety.
Multi-Metal Processing Capability：Suitable for gold, silver, copper, and other non-ferrous metals, meeting the needs of diverse industries.
Energy-Efficient & Cost-Effective：Reduces power consumption while maintaining high-speed melting performance.
Industrial-Grade Durability：Constructed with heat-resistant materials, ensuring long-term use in high-temperature environments.
Let’s work together to enhance your metal recycling and refining efficiency! Contact us today for the best solutions and pricing!

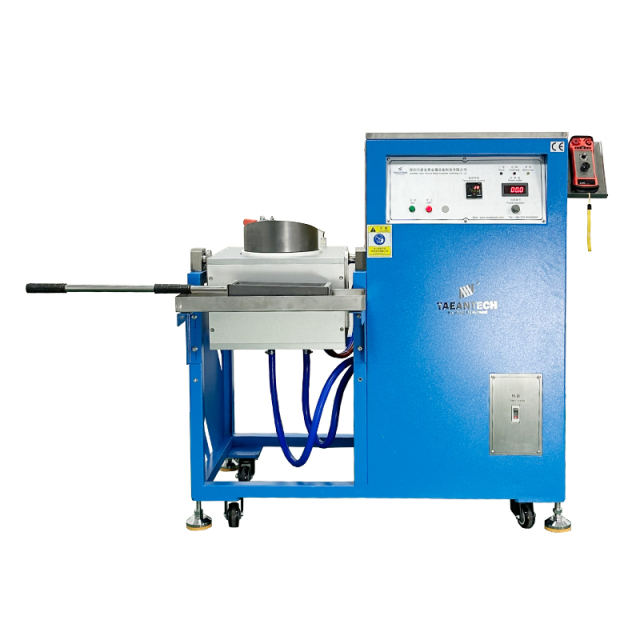

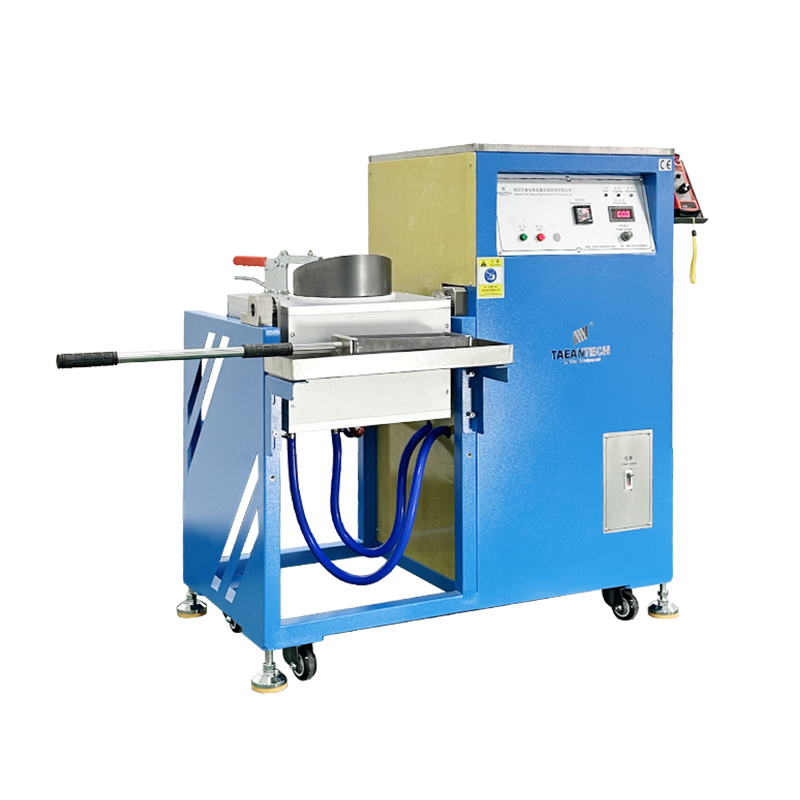

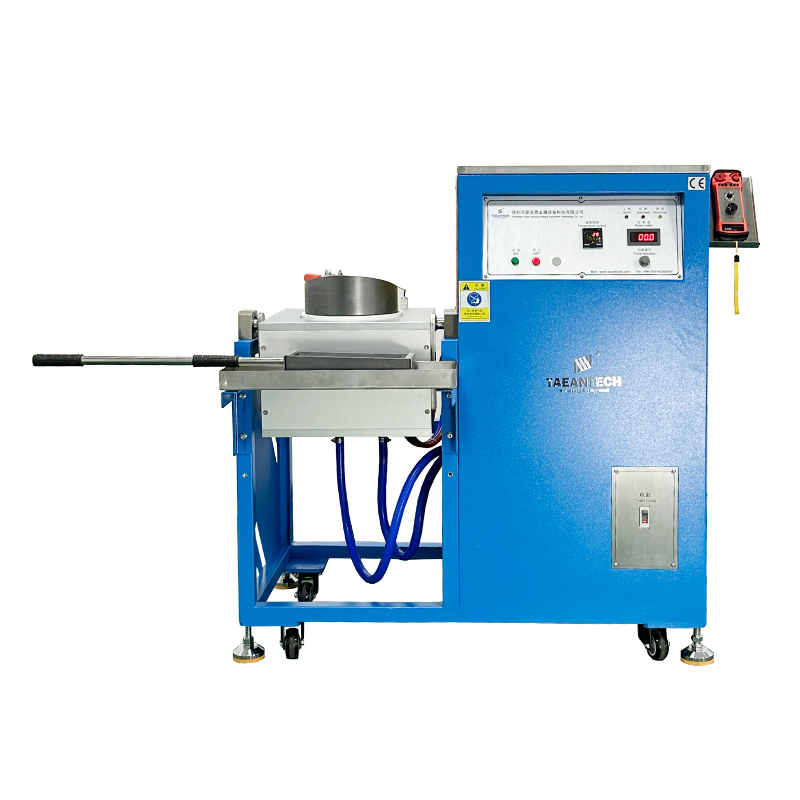

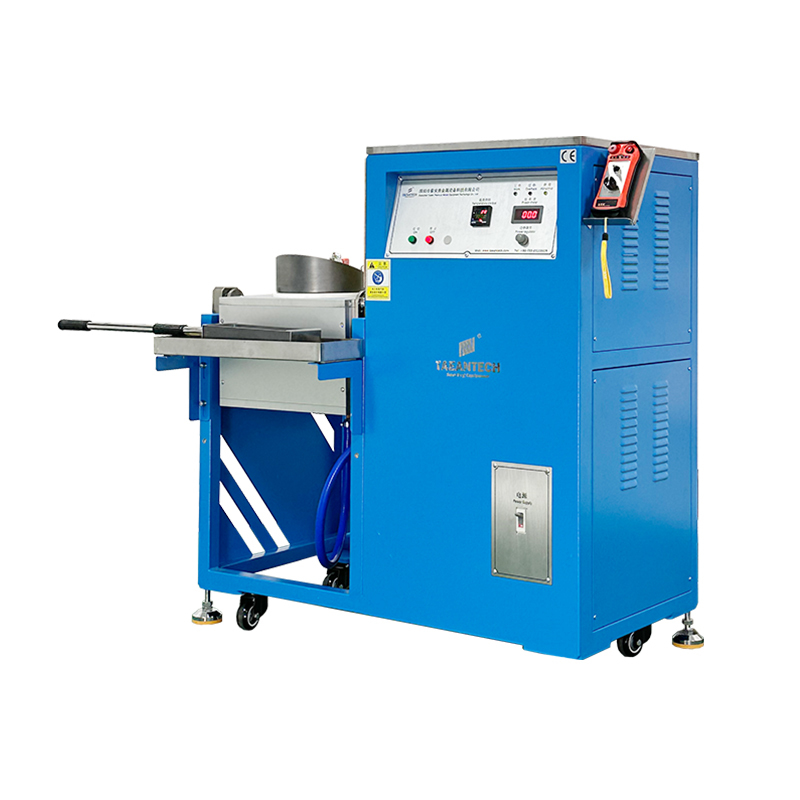

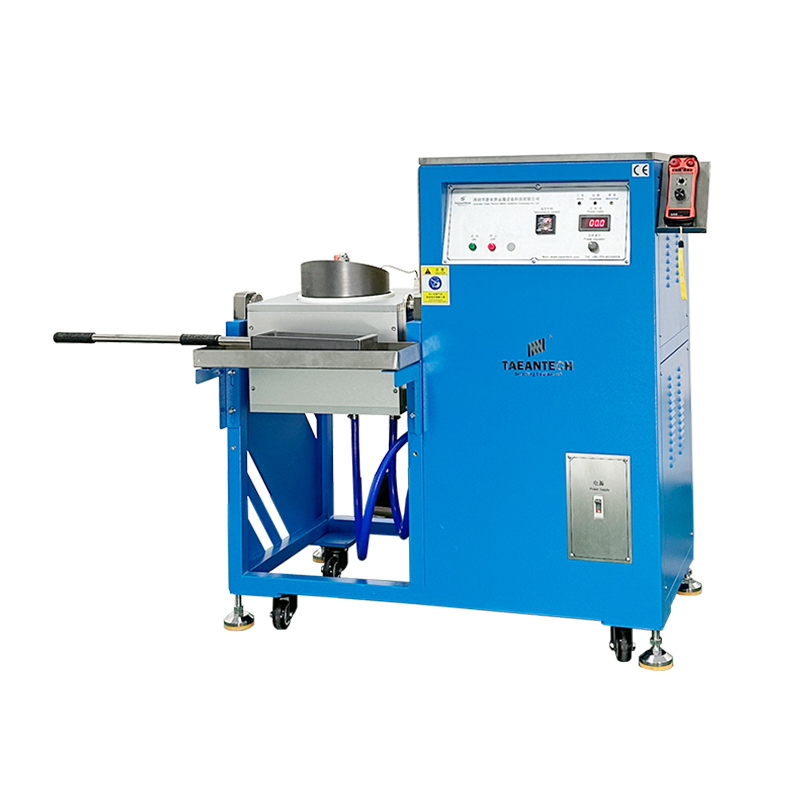

Taeantech Remote Control Metal Melting Pouring Machine (AD) has a maximum temperature of 2100°C, which allows the machine to melt a wider variety of metals. The design of remote control automatic pouring perfectly solves the problems of large-capacity metal (30kg-150kg) pouring difficulties and burning of molten metal at close range. 50KW power supply and IGBT induction heating, can save electricity, but also high efficiency, 10 minutes to melt 100kg of gold, 15 minutes to melt 100kg of platinum.
Part 1: Heating Method
Part 2: Intelligent Control Systems
Taeantech Remote Control Metal Melting Pouring Machine (AD) is the leading IGBT heating technology in the metal melting industry. It consumes a small amount of electricity and efficiently and fully melts a maximum capacity of 150 kg of gold and platinum. When you need to melt large quantities of metal safely and effortlessly, this machine is your best choice. The following are the advantages of IGBT heating.
High efficiency: The short reverse recovery time of IGBT coil induction heating makes it suitable for high-speed switches, which improves the heating efficiency of gold smelters. This high efficiency reduces energy consumption and production costs. With the automatic frequency function, the machine can quickly heat up to 2100°C in 2 minutes. The machine can quickly melt 100 kilograms of platinum, gold, silver, copper and other metals in 15 minutes. This process, which requires a large amount of fossil fuel with a conventional spray gun or an ordinary metal melting machine, takes at least 90 minutes to complete. The efficient operation of IGBT allows metals to melt faster, saving time and energy.
Taeantech smart design: Taeantech Remote Control Metal Melting Pouring Machine (AD) is matched with a remote control to ensure the safety of the operator, save manpower and improve work efficiency. When the operator melts more than 50 kg of metal, because the metal is very heavy, the traditional method - hold the crucible with pliers, hold the pliers with both hands, vigorously lift the crucible, and then pour the melted metal into the mold. This method will not work. First of all, it's very laborious. Second, when pouring large amounts of molten metal, it can splash and cause injury to the operator. Therefore, the Taeantech Remote Control Metal Melting Pouring Machine (AD) was designed for remote control.

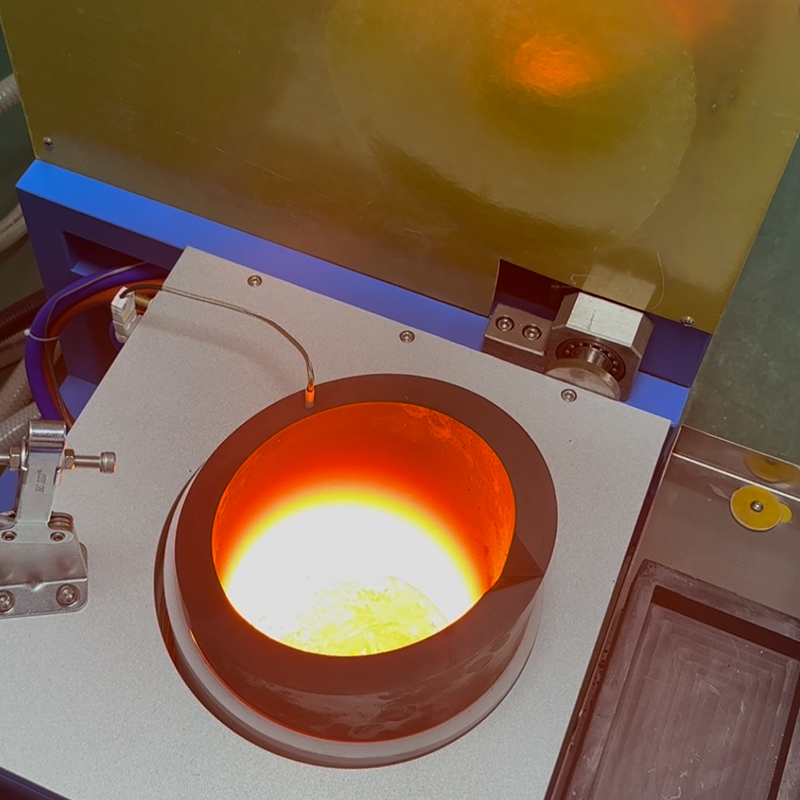

The operator can stay away from the high-temperature molten metal, and the operator will not be burned by the high-temperature molten metal. By remote control, operators can easily pour large quantities of molten metal into molds placed on tables in front of the machine. At the same time, Taeantech designed two water cooling tubes connected to the chiller below the melting chamber to ensure the cooling of the melting chamber. The placement table is designed to prevent spatter of molten metal and has a partition to ensure that high-temperature molten metal does not splash and burn the operator. The machine is also designed with a stainless steel placement platform for the metal to be melted to save space.
High stability: The IGBT induction coil has high control precision and the output power can be accurately controlled, making the gold melting process more stable and reliable. IGBT has a high voltage resistance, can withstand high voltage, to ensure the stable operation of the machine in the melting process. The IGBT can withstand high current, and the Taeantech Remote Control Metal Melting Pouring Machine (AD) can drive 50KW high-power induction heater to meet the needs of various metal melting. The equipment is suitable for smelting platinum, palladium, rhodium gold, K gold, silver, copper, aluminum and other metals, and has a wide range of application prospects.
Environmental protection and energy saving: Compared with the traditional series power supply, the energy saving rate of this new type of IGBT power supply in the melting process can reach more than 30%, and in some cases can reach more than 40%. This is mainly due to the high efficiency and low loss characteristics of IGBT, which can significantly reduce the line loss and power factor loss during the inverter process. Compared with traditional coal heating methods and blast furnace heating methods, IGBT heating technology does not need to use a lot of fossil fuels, so it does not produce harmful gases and pollutants such as smoke and sulfur dioxide. This helps to reduce environmental pollution and protect the ecological environment.
Taeantech Remote Control Metal Melting Pouring Machine (AD) adopts the new heating method of IGBT instead of the traditional firing gun or coal combustion heating method. To ensure that the operator can quickly melt a large amount of metal with a small amount of electricity in a safe environment without harmful smoke and dust, giving customers a perfect metal melting experience.
Taeantech Remote Control Metal Melting Pouring Machine (AD) installs a variety of intelligent control systems, including temperature control, safety protection, automatic parameter adjustment. Taeantech Remote Control Metal Melting Pouring Machine (AD) is a highly intelligent modern metal melting machine.
PID±1°C temperature control: PID is used to precisely control the temperature in the melting furnace to ensure that the metal melts within the optimal temperature range, while avoiding overheating and insufficient temperature affecting the quality of the molten metal. PID temperature control system has the characteristics of accurate control, fast response, reducing temperature fluctuation, automation, and high reliability and stability. These characteristics together constitute the superior performance and wide application value of the system in the field of precious metal smelting. The PID temperature difference configured by Taeantech Remote Control Metal Melting Pouring Machine (AD) is ±1° C. The average temperature difference of common metal melting machines of other merchants is ±10°C-±20°C. When using the Taeantech Remote Control Metal Melting Pouring Machine (AD), you don't have to worry about the loss of precious metals due to temperature inaccuracies.
Safety protection system: When the safety protection system of Taeantech Remote Control Metal Melting Pouring Machine (AD) detects that the current is too large, it will automatically cut off the power or reduce the power to prevent the equipment from being damaged or causing safety accidents such as fire. This protection mechanism is of great significance for preventing electrical faults such as short circuit and overload. The temperature sensor is installed inside the equipment to monitor the temperature state of the equipment in real time. When the temperature of the device is too high, the power supply is automatically cut off or the power is reduced. Multiple indicators are installed on the device to display the device running status and fault information. For example, the work indicator will blink during normal heating; When there is a fault, the corresponding indicator light will light up and issue an alarm sound, so that the operator can find the problem in time and take measures.
Parameter automatic regulation: Taeantech Remote Control Metal Melting Pouring Machine (AD) applies IGBT frequency conversion control technology, which can achieve accurate regulation of heating power. In the melting process, the system will automatically adjust the corresponding power output according to the melting material, the temperature in the furnace and other factors to achieve the best melting effect. The system also has a load adaptive adjustment function, which can monitor the load change in real time and automatically adjust the power output to ensure that the melting effect can be maintained under different load conditions.
Taeantech Remote Control Metal Melting Pouring Machine (AD) The highly intelligent design makes the operation of the melting machine very simple, and the operator can learn to use the machine in a very short time. The advanced heating method and perfect safety protection system ensure that the operator is efficient and safe to melt metal, and the effect of melting metal reaches the best level.
