Model |
MGQ1 |
MGQ5 |
MGQ10 |
|
Voltage |
220V/380V; 50/60Hz single phase/3 phases |
||
|
Power |
0-15KW |
||
|
Capacity (Gold) |
1kg |
5kg |
10kg |
|
Max Temp |
2300°C |
||
|
Melting Time |
1-2 min. |
1-2 min. |
5-8 min. |
|
Temp Accuracy |
±1°C |
||
|
PID temp control |
Optional |
||
|
Application |
Pt, Pd, Rh,SS,Au, Ag, Cu,alloys |
||
|
Cooling type |
Water chiller(sold separately) or Running water (water pump sold separately) |
||
|
Dimensions |
560x480x880mm |
||
|
Net Weight |
approx.60kg |
approx. 65kg |
approx. 80kg |
|
Shipping weight |
approx. 90kg |
approx. 95kg |
approx. 115kg |
Let’s work together to enhance your metal recycling and refining efficiency! Contact us today for the best solutions and pricing!
Yes. This induction melting furnace melts platinum, palladium, rhodium, gold, silver, copper, iron and their alloys, so you are not restricted to gold. Do not assume the gold capacity carries straight across to the platinum group metals, though: they are denser and behave differently in the crucible. Tell us which metal you run and at what charge weight, and we will match a graphite or quartz crucible to it.
Match the model to your heaviest routine batch: MGQ1 for 1 kg of gold, MGQ5 for 5 kg and MGQ10 for 10 kg. Melt time steps up with size, at 1-2 min for MGQ1 and MGQ5 and 5-8 min for MGQ10, and the machines weigh roughly 60 kg, 65 kg and 80 kg, so check your bench or floor before it arrives. If you need 15 kg in one heat, raise it with us before ordering, because the largest gold capacity shown is 10 kg.
One furnace covers both: the MGQ range runs on 220V or 380V at 50/60Hz, single phase or three phase, drawing 0-15KW. What matters is that the machine you receive matches the supply you actually have, so check your phase, voltage and breaker rating before ordering. A single-phase 220V workshop and a three-phase 380V workshop need the unit configured differently, and rewiring afterwards costs more than getting it right at the start.
Plan for cooling as a separate purchase: you either run a water chiller or use running water moved by an external pump, and both are sold separately from the furnace. Cooling is not optional on a high temperature induction furnace, because the induction coil and power supply need steady water flow the whole time you are melting. Settle your water source, flow, drainage and the extra cost before the unit lands, otherwise you cannot run it on day one.

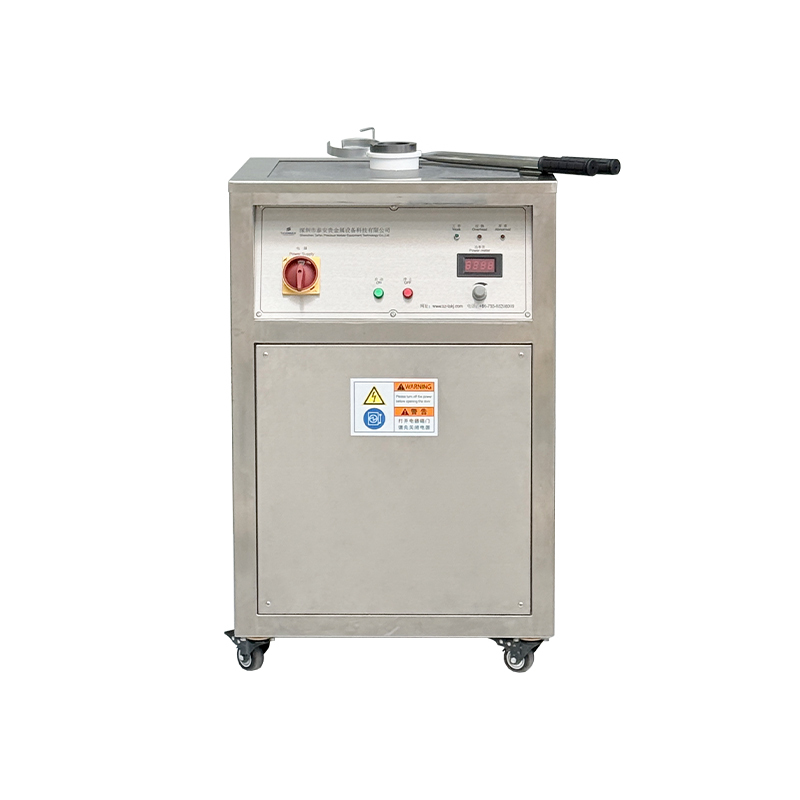

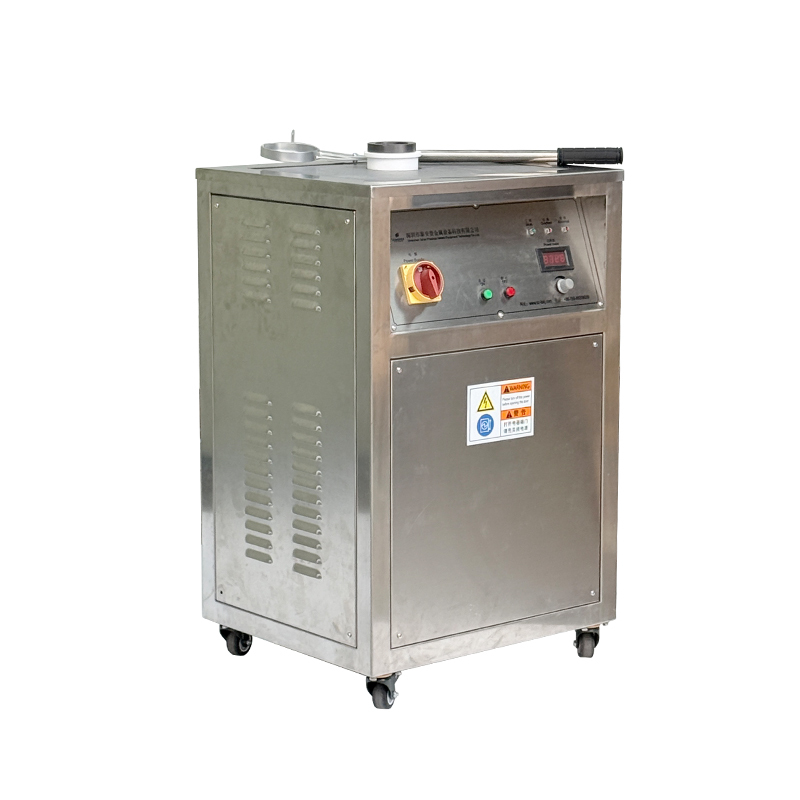

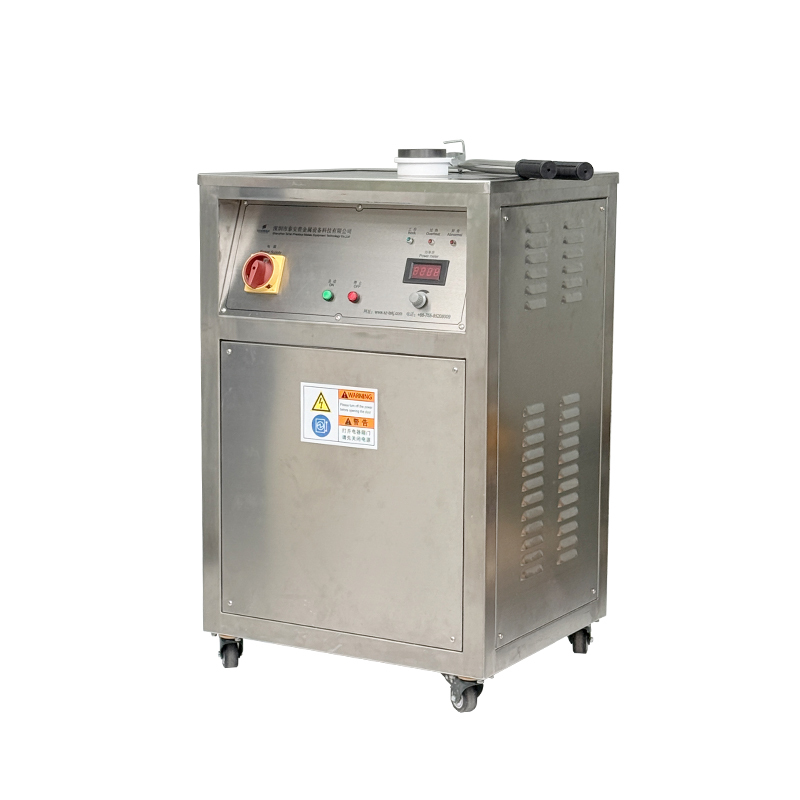

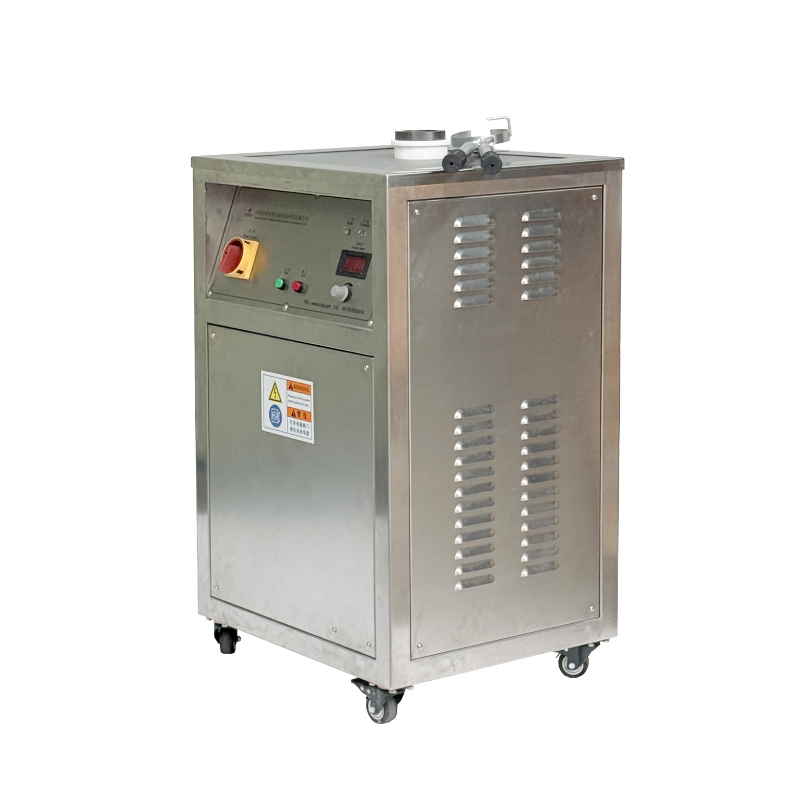

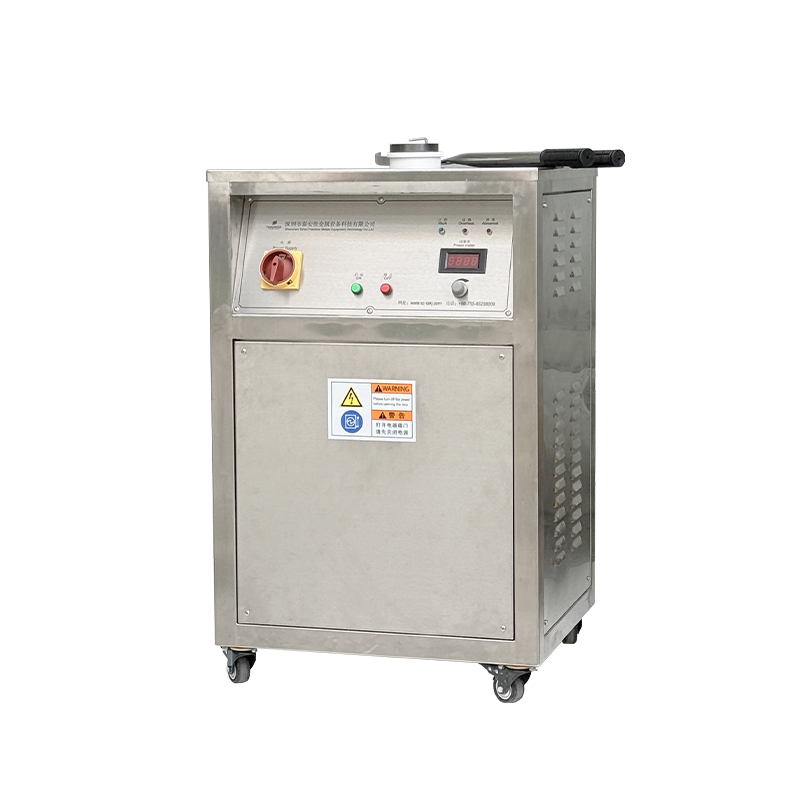

Yes, the casing is 304 stainless steel, and that is a working choice rather than a cosmetic one. As a high temperature induction furnace manufacturer we specify it because it stands up to radiant heat and metal splashes far better than painted mild steel, so the body keeps its shape and finish through years of 2100℃ melting. Check the panels and door fit on arrival, keep the casing clear of slag and spill, and it will outlast a thin-gauge cabinet.
Every machine carries a one-year free warranty from the date of purchase, plus one-on-one teaching guidance from our engineers. In practice you get a direct route for setup questions, melt parameters and troubleshooting rather than a manual and silence. Use that guidance in your first weeks: run your real metal at your real charge weight while we are on hand, then record the settings that work so they stay with the furnace when operators change.
Part 2: Intelligent Control Systems
IGBT induction heating power supply adopts frequency and power regulator, which can maintain constant power output and is not affected by the thickness of the charge and lining, especially when heating non-magnetic substances, with high efficiency.
High efficiency: IGBT short reverse recovery time allows it to be adapted to high-speed switching, which improves the heating efficiency of the gold melting machine.This high efficiency reduces energy consumption and lowers production costs.With the automatic frequency modulation function, the machine can quickly heat up to 2100°C within 2 minutes.The machine can quickly melt 10 kg of gold, silver, copper and other metals in 5 minutes.This process, a conventional ordinary spray gun or an ordinary metal melting machine, requires a lot of energy and takes at least 30 minutes to complete.The efficient operation of IGBT makes metal melting faster, saving time and energy.
Part 2. Intelligent Control Systems
Taeantech Vertical Stainless Steel Body Metal Melting Machine (MGQ-S) is equipped with a variety of intelligent control systems, including temperature control, safety protection, and automatic parameter adjustment. Taeantech Vertical Stainless Steel Body Metal Melting Machine (MGQ-S) is a highly intelligent, high-tech modern metal melting furnace.
